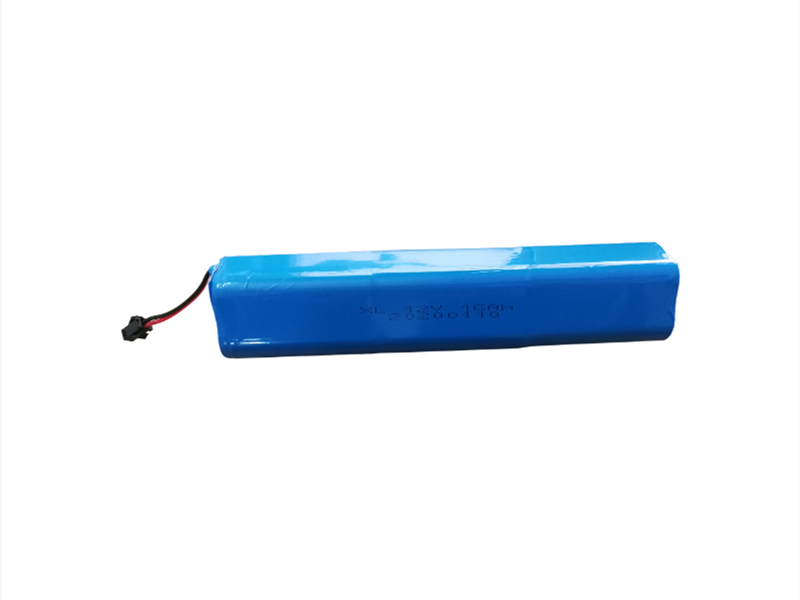

12V Cylindrical Lithium Battery Product Model: XL 12V 16000mAh
Technical parameters of 12V cylindrical lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
· Single battery voltage: 4V
· Nominal voltage after the battery pack is assembled: 12V
· Single battery capacity: 3.5Ah
· Battery combination mode: 3 strings 4 parallels
· Battery voltage range after combination: 9.0V~12.6V
· Battery capacity after combination: 16AH
· Battery pack power: 192W
· Battery pack size: 39*40*205.5*mm
· Maximum discharge current: <16A
· Instantaneous discharge current: 32A~48A
· Maximum charging current: 0.2-2C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
12V cylindrical lithium battery
· Comply with relevant national standards and requirements for batteries
· All finished battery products have been calibrated and tested before leaving the factory and can be used normally
