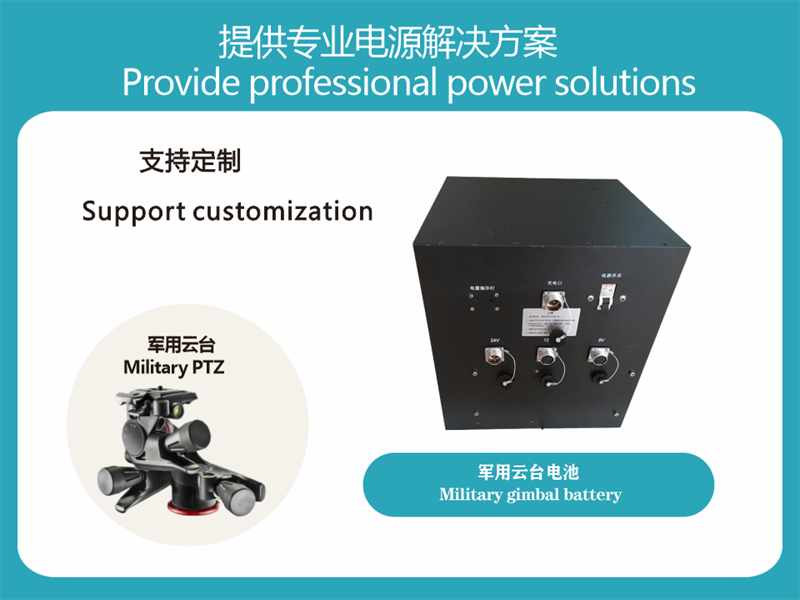

Special lithium battery for military pan/tilt, spin force adopts lithium iron phosphate 24V lithium battery solution, three-way voltage stabilization output, remote data transmission, meeting the working needs of different electronic equipment, safety, cycle life of more than 2000 times. Separate charging and discharging, power display, a single switch controls the output and input of the entire battery, and it is easy to control by intelligent manual labor.
model XL50Ah-11190316
Minimal capacity (0.5C) 100Ah
Nominal voltage 24V
Max. charge voltage 29.4V
Discharge cut-off voltage ≤20V
Max Charge current 25A
Max Working current 25A
Pack Impedance standard ≤20mΩ
Weight (Approx.) ≈40kg
Max. dimension (L×W×H) 335*300*370(mm)
wire specifications DSTB8-2P Fence terminal
Shell type 1.5mm Q235 cold rolled steel plate Charge 0℃～45℃
Discharge -10℃～55℃
Single cell over-charge cut-off 3.85V voltage
