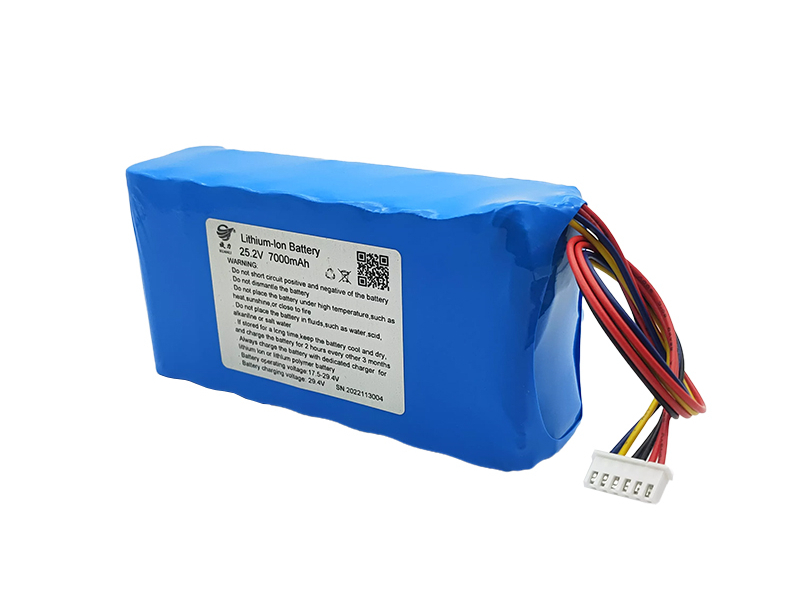

25.2V communication lithium battery product model: XL 25.2V 7000mAh
Technical parameters of 25.2V communication lithium battery (specific design according to customer requirements - voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.6V
·Nominal voltage after battery pack combination: 25.2V
·Single battery capacity: 3.5Ah
·Battery combination mode: 7 series and 2 parallel
·Battery voltage range after combination: 17.5v-29.4v
·Battery capacity after combination: 7.0ah
·Battery pack power: 176.4Wh
·Battery pack size: 40 * 131 * 68mm
·Maximum discharge current:<7A
·Instantaneous discharge current: 14A-21A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, TI)
25.2V communication lithium battery
·Meet relevant national battery standards and requirements
·All finished batteries have been calibrated and tested before leaving the factory. Can be used directly
