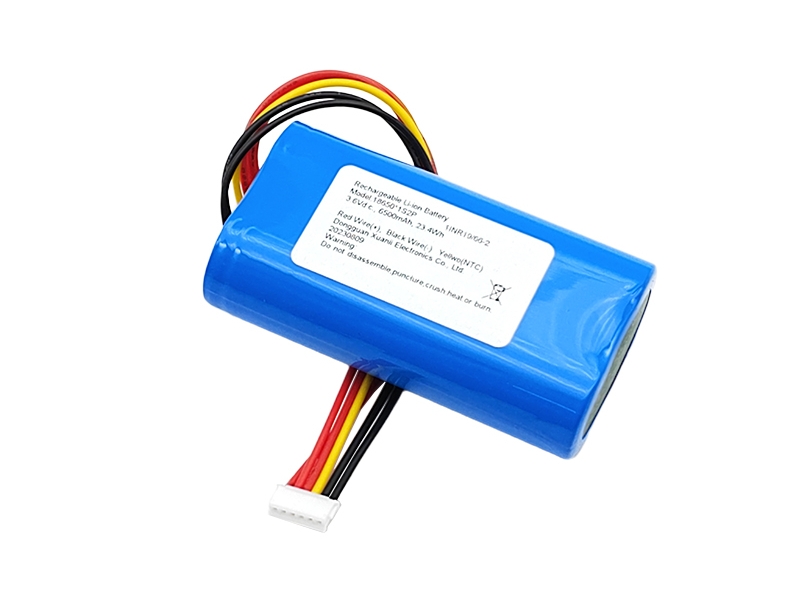

3.6V cylindrical lithium battery product model: XL 3.6V 6500mAh
Technical parameters of 3.6V cylindrical lithium battery (specific can be designed according to customer requirements - voltage/capacity/size/line)
Model of single battery: 18650
·Single battery voltage: 3.6V
·Nominal voltage after battery pack combination: 3.6V
·Single battery capacity: 3.25Ah
·Battery combination mode: 1 series and 2 parallel
·Battery voltage range after combination: 3.0V~4.2V
·Battery capacity after combination: 6.5Ah
·Battery pack power: 23.4Wh
·Battery pack size: 20 * 40 * 69mm
·Maximum discharge current: ＜ 6.5A
·Instantaneous discharge current: 13A~19.5A
·Maximum charging current: 0.2-2C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, TI)
3.6V cylindrical lithium battery
·Meet relevant national standards and requirements for batteries
·The finished battery has been calibrated and tested before leaving the factory and can be used directly
